opnDossier System Architecture¶

Overview¶

opnDossier is a CLI-based OPNsense configuration processor designed with an offline-first, operator-focused architecture. The system transforms complex XML configuration files into human-readable markdown documentation, following security-first principles and air-gap compatibility.

System Architecture

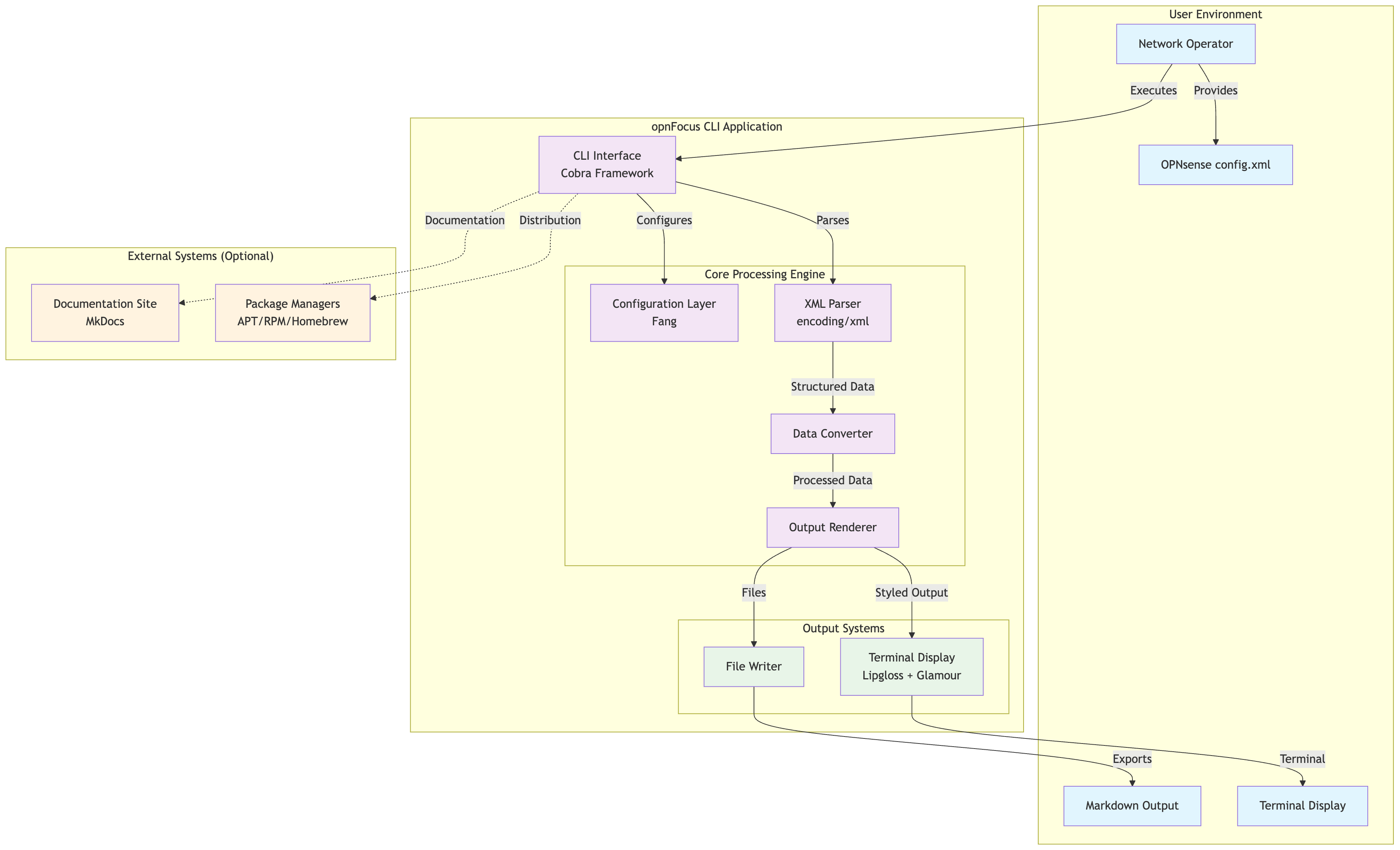

High-Level Architecture¶

Core Design Principles¶

Offline-First: Zero external dependencies, complete air-gap compatibility
Operator-Focused: Built for network administrators and operators
Framework-First: Leverages established Go libraries (Cobra, Charm ecosystem)
Structured Data: Maintains configuration hierarchy and relationships
Security-First: No telemetry, input validation, secure processing

Architecture Pattern¶

Monolithic CLI Application with clear separation of concerns
Single Binary Distribution for easy deployment
Local Processing Only - no external network calls
Streaming Data Pipeline from XML input to various output formats

Technology Stack¶

Built with modern Go practices and established libraries:

Component	Technology
CLI Framework	Cobra
Configuration	Viper
CLI Enhancement	Charm Fang
Terminal Styling	Charm Lipgloss
Markdown Rendering	Charm Glamour
XML Processing	Go's built-in `encoding/xml`
Structured Logging	Charm Log

The CLI uses a layered architecture: Cobra provides command structure and argument parsing, Viper handles layered configuration management (files, env, flags), and Fang adds enhanced UX features like styled help, automatic version flags, and shell completion.

Services and Components¶

1. CLI Interface Layer¶

Framework: Cobra CLI
Responsibility: Command parsing, user interaction, error handling
Key Files: cmd/root.go, cmd/opnsense.go

2. Configuration Management¶

Framework: spf13/viper
Sources: CLI flags > Environment variables > Config file > Defaults
Format: YAML configuration files
Precedence: Standard order where environment variables override config files for deployment flexibility

3. Data Processing Engine¶

XML Parser Component¶

Technology: Go's built-in encoding/xml
Input: OPNsense config.xml files
Output: Structured Go data types
Features: Schema validation, error reporting, automatic charset conversion (UTF-8, US-ASCII, ISO-8859-1, Windows-1252)

Data Converter Component¶

Input: Parsed XML structures
Output: Markdown content
Features: Hierarchy preservation, metadata injection

Output Renderer Component¶

Formats: Terminal display, Markdown files, JSON (planned)
Technologies: Charm Lipgloss (styling) + Charm Glamour (rendering)

4. Output Systems¶

Terminal Display: Syntax-highlighted, styled terminal output
File Export: Markdown file generation with metadata
Future: HTML, JSON, and other structured formats

Data Model Architecture¶

opnDossier uses a hierarchical model structure that mirrors the OPNsense XML configuration while organizing functionality into logical domains:

graph TB
    subgraph "Root Configuration"
        ROOT[Opnsense Root]
        META[Metadata & Global Settings]
    end

    subgraph "System Domain"
        SYS[System Configuration]
        USERS[User Management]
        GROUPS[Group Management]
        SYSCFG[System Services Config]
    end

    subgraph "Network Domain"
        NET[Network Configuration]
        IFACES[Interface Management]
        ROUTING[Routing & Gateways]
        VLAN[VLAN Configuration]
    end

    subgraph "Security Domain"
        SEC[Security Configuration]
        FIREWALL[Firewall Rules]
        NAT[NAT Configuration]
        VPN[VPN Services]
        CERTS[Certificate Management]
    end

    subgraph "Services Domain"
        SVC[Services Configuration]
        DNS[DNS Services]
        DHCP[DHCP Services]
        MONITOR[Monitoring Services]
        WEB[Web Services]
    end

    ROOT --> META
    ROOT --> SYS
    ROOT --> NET
    ROOT --> SEC
    ROOT --> SVC

    SYS --> USERS
    SYS --> GROUPS
    SYS --> SYSCFG

    NET --> IFACES
    NET --> ROUTING
    NET --> VLAN

    SEC --> FIREWALL
    SEC --> NAT
    SEC --> VPN
    SEC --> CERTS

    SVC --> DNS
    SVC --> DHCP
    SVC --> MONITOR
    SVC --> WEB

This hierarchical structure provides:

Logical Organization: Related configuration grouped by functional domain
Maintainability: Easier to locate and modify specific configuration types
Extensibility: New features can be added to appropriate domains
Validation: Domain-specific validation rules improve data integrity
API Evolution: JSON tags enable better REST API integration

Data Flow Architecture¶

sequenceDiagram
    participant User
    participant CLI
    participant ConfigMgr as Config Manager
    participant Parser as XML Parser
    participant Converter
    participant Renderer
    participant Output

    User->>CLI: opndossier convert config.xml
    CLI->>ConfigMgr: Load configuration
    ConfigMgr-->>CLI: Configuration object
    CLI->>Parser: Parse XML file

    alt Valid XML
        Parser->>Parser: Validate structure
        Parser-->>CLI: Structured data
        CLI->>Converter: Transform data
        Converter-->>CLI: Markdown content
        CLI->>Renderer: Format output

        alt Terminal display
            Renderer->>Output: Styled terminal
            Output-->>User: Visual output
        else File export
            Renderer->>Output: Write file
            Output-->>User: Confirmation
        end
    else Invalid XML
        Parser-->>CLI: Error details
        CLI-->>User: Error message
    end

Programmatic Generation Architecture¶

Core Architecture¶

opnDossier uses programmatic markdown generation via the MarkdownBuilder component, delivering high performance, type safety, and enhanced developer experience.

sequenceDiagram
    participant User
    participant CLI
    participant Parser as XML Parser
    participant Builder as MarkdownBuilder
    participant Methods as Go Methods
    participant Renderer
    participant Output

    User->>CLI: opndossier convert config.xml
    CLI->>Parser: Parse XML file
    Parser-->>CLI: Structured data
    CLI->>Builder: Create builder instance
    Builder->>Methods: Direct method calls
    Methods->>Methods: Type-safe operations
    Methods-->>Builder: Structured content
    Builder->>Renderer: Optimized string building
    Renderer->>Output: Final markdown
    Output-->>User: Generated report

Key Architectural Features¶

1. Performance Optimizations¶

The programmatic approach delivers significant performance improvements:

Memory Usage: Reduced allocations through direct string building
Generation Speed: Fast generation via method-based approach
Throughput: High reports per second
Scalability: Consistent performance across all dataset sizes

Performance can be measured using benchmarks in internal/converter/markdown_bench_test.go.

2. Type Safety¶

graph TB
    subgraph "Programmatic Generation"
        P1[Go Methods] --> P2[Compile-time Validation]
        P2 --> P3[Type-safe Operations]
        P3 --> P4[Explicit Error Handling]
        P4 --> P5[Structured Results]
    end

    style P2 fill:#99ff99
    style P3 fill:#99ff99
    style P4 fill:#99ff99

3. Security Enhancements (Red Team Focus)¶

Output Obfuscation: Built-in capabilities for sensitive data handling
Complete Offline Support: No external dependencies
Memory Safety: Improved handling of large configurations
Error Isolation: Structured error handling prevents information leakage

MarkdownBuilder Component Architecture¶

classDiagram
    class ReportBuilder {
        <<interface>>
        +BuildStandardReport(data) string
        +BuildCustomReport(data, options) string
        +BuildSystemSection(data) string
        +BuildNetworkSection(data) string
        +BuildSecuritySection(data) string
        +BuildServicesSection(data) string
    }

    class MarkdownBuilder {
        -config *OpnSenseDocument
        -options BuildOptions
        -logger *Logger
        +CalculateSecurityScore(data) int
        +AssessRiskLevel(severity) string
        +FilterSystemTunables(tunables, filter) []SysctlItem
        +GroupServicesByStatus(services) map[string][]Service
        +FormatInterfaceLinks(interfaces) string
        +EscapeMarkdownSpecialChars(input) string
    }

    class SecurityAssessor {
        +CalculateSecurityScore(data) int
        +AssessRiskLevel(severity) string
        +AssessServiceRisk(service) string
        +DetermineSecurityZone(interface) string
    }

    class DataTransformer {
        +FilterSystemTunables(tunables, filter) []SysctlItem
        +GroupServicesByStatus(services) map[string][]Service
        +FormatSystemStats(data) map[string]interface{}
    }

    class StringFormatter {
        +EscapeMarkdownSpecialChars(input) string
        +FormatTimestamp(timestamp) string
        +TruncateDescription(text, length) string
        +FormatBoolean(value) string
    }

    ReportBuilder <|.. MarkdownBuilder
    MarkdownBuilder o-- SecurityAssessor
    MarkdownBuilder o-- DataTransformer
    MarkdownBuilder o-- StringFormatter

Data Flow Pipeline (Programmatic Mode)¶

graph TD
    subgraph "Input Processing"
        XML[OPNsense XML] --> Parser[Enhanced Parser]
        Parser --> Model[Structured Model]
    end

    subgraph "Programmatic Generation Engine"
        Model --> Builder[MarkdownBuilder]
        Builder --> Security[SecurityAssessor]
        Builder --> Transform[DataTransformer]
        Builder --> Format[StringFormatter]

        Security --> Methods[Method-Based Generation]
        Transform --> Methods
        Format --> Methods
    end

    subgraph "Output Optimization"
        Methods --> StringBuild[Optimized String Building]
        StringBuild --> Render[Direct Rendering]
        Render --> Output[Markdown Output]
    end

    subgraph "Performance Characteristics"
        Metrics[Performance Metrics<br/>• Faster generation<br/>• Reduced memory<br/>• Increased throughput<br/>• Type-safe operations]
    end

    Output -.-> Metrics

    style Builder fill:#99ff99,stroke:#333,stroke-width:4px
    style Methods fill:#99ff99,stroke:#333,stroke-width:2px
    style StringBuild fill:#99ff99,stroke:#333,stroke-width:2px

Method Categories and Performance¶

Security Assessment Methods¶

CalculateSecurityScore: 1.59M operations/sec
AssessRiskLevel: 92M operations/sec
AssessServiceRisk: High-frequency assessment capability

Data Transformation Methods¶

FilterSystemTunables: 797K operations/sec
GroupServicesByStatus: 1.01M operations/sec
FormatSystemStats: Optimized for large datasets

String Utility Methods¶

EscapeMarkdownSpecialChars: Ultra-fast character processing
FormatTimestamp: Efficient time formatting
TruncateDescription: Word-boundary aware truncation

Section Builders¶

BuildSystemSection: 1.7K operations/sec (comprehensive sections)
BuildNetworkSection: 6.7K operations/sec
BuildSecuritySection: 5.1K operations/sec
BuildServicesSection: 13K operations/sec

Memory Management Architecture¶

graph LR
    subgraph "Programmatic Generation"
        P1[Direct Methods] --> P2[Structured Building]
        P2 --> P3[Pre-allocated Buffers]
        P3 --> P4[Optimized Strings]
        P4 --> P5[Efficient Memory]
        P5 --> P6[Minimal Allocations]
    end

    style P5 fill:#99ff99
    style P6 fill:#99ff99

Error Handling Architecture¶

// Structured error types
type ValidationError struct {
    Field   string
    Value   any
    Message string
}

type GenerationError struct {
    Component string
    Operation string
    Cause     error
}

// Context-aware error handling
func (b *MarkdownBuilder) BuildSection(data *model.OpnSenseDocument) (string, error) {
    if err := b.validateInput(data); err != nil {
        return "", &ValidationError{
            Field:   "input_data",
            Value:   data,
            Message: fmt.Sprintf("invalid input: %v", err),
        }
    }

    result, err := b.generateContent(data)
    if err != nil {
        return "", &GenerationError{
            Component: "section_builder",
            Operation: "content_generation",
            Cause:     err,
        }
    }

    return result, nil
}

Modular Report Generator Architecture¶

Design Principles¶

Report generators in opnDossier follow a modular, self-contained architecture designed to support:

Build-time feature selection via Go build flags
Pro-level features through optional modules
Independent development of report types
Clean separation between shared infrastructure and report-specific logic

Module Structure¶

Each report generator should be a self-contained module with its own:

Generation logic - All markdown/output construction
Calculation logic - Security scoring, risk assessment, statistics
Data transformations - Report-specific data processing
Constants and mappings - Report-specific configuration

graph TB
    subgraph "Shared Infrastructure"
        Model[model.OpnSenseDocument]
        Helpers[Shared Helpers<br/>• String formatting<br/>• Markdown escaping<br/>• Table building]
    end

    subgraph "Report Generator Modules"
        Standard[Standard Report<br/>• Generation logic<br/>• Calculations<br/>• Transformations]
        Blue[Blue Team Report<br/>• Compliance checks<br/>• Security findings<br/>• Risk assessment]
        Red[Red Team Report<br/>• Attack surface<br/>• Enumeration data<br/>• Pivot analysis]
        Pro[Pro Reports<br/>• Advanced analytics<br/>• Custom formats<br/>• Enterprise features]
    end

    Model --> Standard
    Model --> Blue
    Model --> Red
    Model --> Pro

    Helpers --> Standard
    Helpers --> Blue
    Helpers --> Red
    Helpers --> Pro

    style Pro fill:#ffd700,stroke:#333,stroke-width:2px

Build Flag Integration¶

Report generators can be conditionally included using Go build tags:

//go:build pro

package reports

// Pro-level report generators included only with -tags=pro

This enables:

Standard builds with core report types
Pro builds with additional enterprise features
Custom builds with specific report combinations

Implementation Guidelines¶

What Each Report Module Should Contain¶

Report modules are self-contained packages. Currently, report generation lives in internal/converter/builder/ and internal/converter/formatters/. As the system evolves to support Pro-level features, each report type may be extracted to its own package following this structure:

internal/converter/<report-type>/
├── generator.go       # Main generation logic
├── calculations.go    # Report-specific calculations
├── transformers.go    # Data transformation functions
├── constants.go       # Report-specific constants
└── <report-type>_test.go

What Should Remain Shared¶

model.OpnSenseDocument - The parsed configuration model
String helpers - Markdown escaping, formatting utilities
Table builders - Generic markdown table construction
Common interfaces - ReportBuilder, Generator interfaces

Example Module Structure¶

// internal/reports/blueteam/generator.go
package blueteam

import (
    "github.com/EvilBit-Labs/opnDossier/internal/model"
    "github.com/EvilBit-Labs/opnDossier/internal/converter/formatters"
)

type BlueTeamGenerator struct {
    // All state and configuration for blue team reports
}

func (g *BlueTeamGenerator) Generate(doc *model.OpnSenseDocument) (string, error) {
    // Self-contained generation using only model and helpers
    score := g.calculateSecurityScore(doc)
    findings := g.analyzeCompliance(doc)
    return g.buildReport(doc, score, findings)
}

// All calculation logic is internal to this module
func (g *BlueTeamGenerator) calculateSecurityScore(doc *model.OpnSenseDocument) int {
    // Blue team specific scoring algorithm
}

Benefits¶

Independent Testing - Each report module can be tested in isolation
Feature Gating - Pro features excluded from standard builds
Reduced Coupling - Changes to one report type don't affect others
Clear Ownership - Each module has defined boundaries
Extensibility - New report types added without modifying core

Data Storage Strategy¶

Local File System¶

Configuration: ~/.opnDossier.yaml (user preferences)
Input: OPNsense XML files (any location)
Output: Markdown files (user-specified or current directory)

Memory Management¶

Structured Data: Go structs with XML/JSON tags
Large Files: Streaming processing for memory efficiency
Type Safety: Strong typing throughout the pipeline

No Persistent Storage¶

Stateless Operation: Each run is independent
No Database: All data flows through memory
Temporary Files: Cleaned up automatically

External Integrations¶

Documentation System¶

Technology: MkDocs with Material theme
Purpose: Static documentation generation
Deployment: Local development server, no runtime dependencies

Package Distribution¶

Build System: GoReleaser for multi-platform builds
Platforms: Linux, macOS, Windows (amd64, arm64)
Distribution: GitHub Releases, package managers, direct download
Formats: Binary archives, system packages (deb, rpm, apk)

Development Integration¶

CI/CD: GitHub Actions
Quality: golangci-lint, pre-commit hooks
Testing: Go's built-in testing framework
Task Runner: Just for development workflows

Air-Gap/Offline Considerations¶

Design for Isolation¶

graph LR
    subgraph "Air-Gapped Environment"
        subgraph "Secure Network"
            FW[OPNsense Firewall]
            OPS[Operator Workstation]
            DOCS[Documentation Server]
        end

        subgraph "opnDossier Application"
            BIN[Single Binary]
            CFG[Local Config]
        end
    end

    FW -->|config.xml| OPS
    OPS -->|Executes| BIN
    BIN -->|Uses| CFG
    BIN -->|Generates| DOCS

Offline Capabilities¶

Zero External Dependencies: All libraries embedded in binary
No Network Calls: Completely self-contained operation
Portable Deployment: Single binary, no installation required
Data Exchange: File-based import/export only

Data Exchange Patterns¶

Import: Local files, USB drives, network shares
Export: Markdown, JSON, plain text
Transfer: Standard file transfer protocols (SCP, SFTP, etc.)

Versioned Data Strategy¶

Configuration Versioning¶

Backward Compatibility: Support for older OPNsense versions
Forward Compatibility: Graceful handling of newer configurations
Version Detection: Automatic OPNsense version identification
Migration Support: Utilities for format changes

Non-Destructive Processing¶

Original Preservation: Input files never modified
Timestamped Outputs: Version metadata in all outputs
Audit Trail: Change tracking and diff generation
Rollback Support: Easy reversion to previous states

Schema Evolution¶

graph TB
    subgraph "Version Management"
        V1[OPNsense v1.x<br/>Basic features]
        V2[OPNsense v2.x<br/>Enhanced features]
        V3[OPNsense v3.x<br/>Latest features]
    end

    subgraph "Compatibility Layer"
        COMPAT[Version Handler]
        MIGRATE[Migration Engine]
        VALIDATE[Schema Validator]
    end

    subgraph "Processing Pipeline"
        PARSER[XML Parser]
        CONVERTER[Data Converter]
        RENDERER[Output Renderer]
    end

    V1 --> COMPAT
    V2 --> COMPAT
    V3 --> COMPAT

    COMPAT --> VALIDATE
    COMPAT --> MIGRATE
    MIGRATE --> PARSER
    VALIDATE --> PARSER

    PARSER --> CONVERTER
    CONVERTER --> RENDERER

Security Architecture¶

Threat Model¶

Primary Threats: Malicious XML files, path traversal, resource exhaustion
Not Addressed: Network attacks (offline operation), privilege escalation (user-level tool)

Security Controls¶

Input Validation: XML schema validation, path sanitization, size limits
Processing Security: Memory safety (Go runtime), type safety, error handling
Output Security: Path validation, permission checks, content sanitization

Air-Gap Security Benefits¶

No Network Attack Surface: Offline operation eliminates network-based threats
No Data Exfiltration: Local processing only
No Unauthorized Updates: Manual deployment only
Audit-Friendly: All operations are local and traceable

Deployment Patterns¶

Single Binary Distribution¶

Build: Cross-compiled Go binary
Size: Minimal footprint (~10-20MB)
Dependencies: None (all embedded)
Installation: Drop-in replacement, no setup required

Multi-Platform Support¶

Operating Systems: Linux, macOS, Windows
Architectures: amd64, arm64
Special: macOS universal binaries
Packages: Native package formats for each platform

Enterprise Deployment¶

Package Management: APT, RPM, Homebrew integration
Code Signing: Verified binaries for security
Bulk Deployment: Network share or USB distribution
Configuration Management: YAML-based configuration

Quick Start Architecture Summary¶

User provides OPNsense config.xml file
CLI parses command-line arguments and loads configuration
XML Parser validates and structures the input data
Data Converter transforms XML to markdown with metadata
Output Renderer formats for terminal display or file export
User receives human-readable documentation

Key Benefits: Offline operation, security-first design, operator-focused workflows, cross-platform compatibility, and comprehensive documentation generation from complex network configurations.

For detailed architecture information, see the complete architecture documentation.
